Comparing Copilot Studio Agent Builder and Microsoft Copilot Studio

Summary Lede: This article provides a detailed technical comparison between Copilot Studio Agent Builder (part of Microsoft 365 Copilot) and Microsoft Copilot Studio (part of Power Platform). It explores their differences in target users, ease of use, technical capabilities, integration options, customization flexibility, deployment channels, governance features, and licensing models. The goal is to help organizations understand which tool best fits their specific AI assistant development needs.

Background and Evolution

Microsoft’s Copilot ecosystem has evolved to provide organizations with tools for creating customized AI assistants (“agents”) that address specific business requirements. Copilot Studio Agent Builder and Copilot Studio represent two distinct solutions within this ecosystem, developed as components of Microsoft’s broader AI and productivity framework.

These tools illustrate Microsoft’s dual approach to agent development: providing simple agent creation capabilities for general users with minimal technical requirements (through Agent Builder), while simultaneously offering more sophisticated development environments for complex solutions (through Copilot Studio).
The following sections examine these platforms in detail, analyzing their technical capabilities, target users, customization options, integration possibilities, implementation scenarios, and fundamental differences in terms of agent autonomy, process orchestration, and system extensibility.

Screenshots

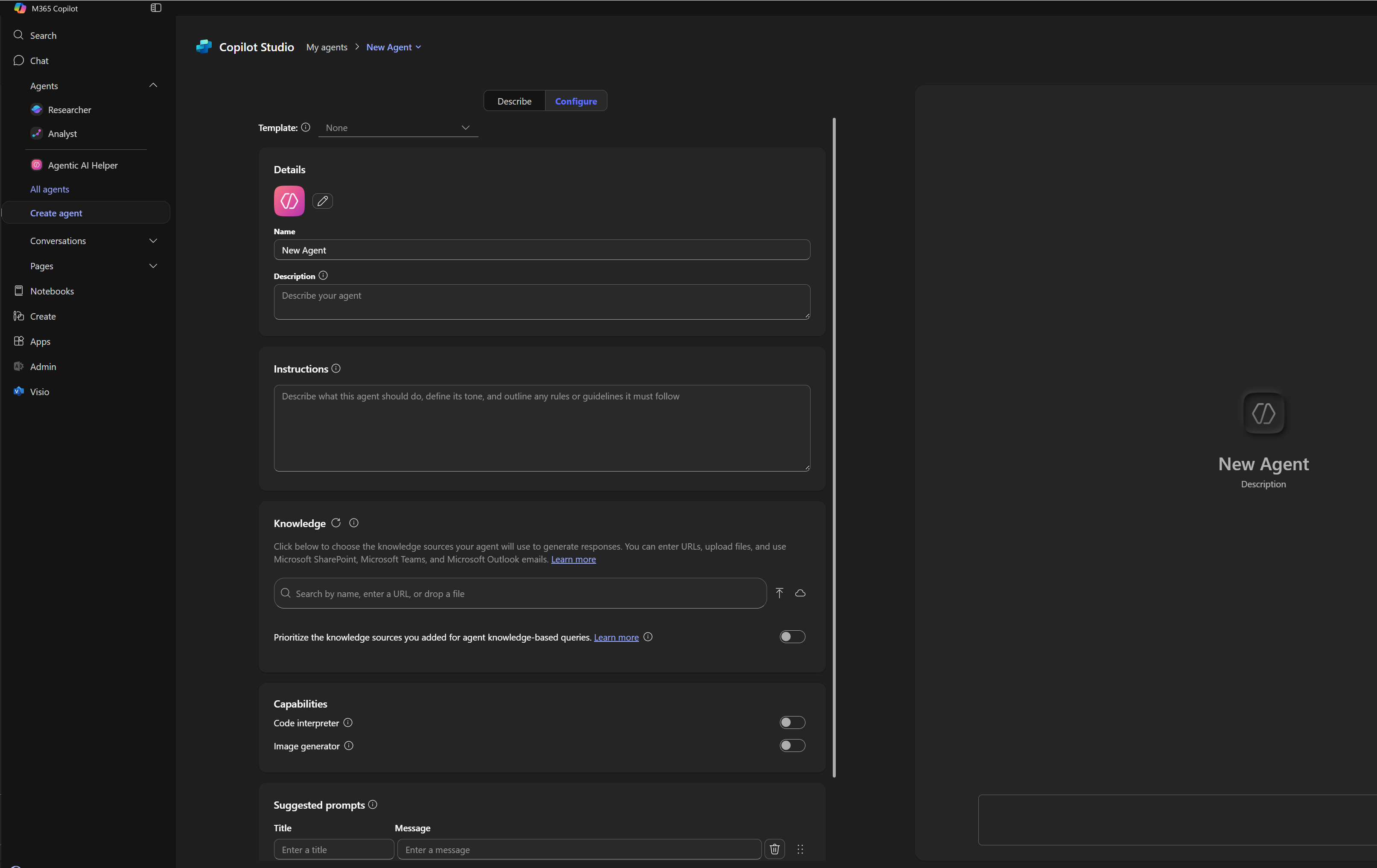

Copilot Studio Agent Builder:

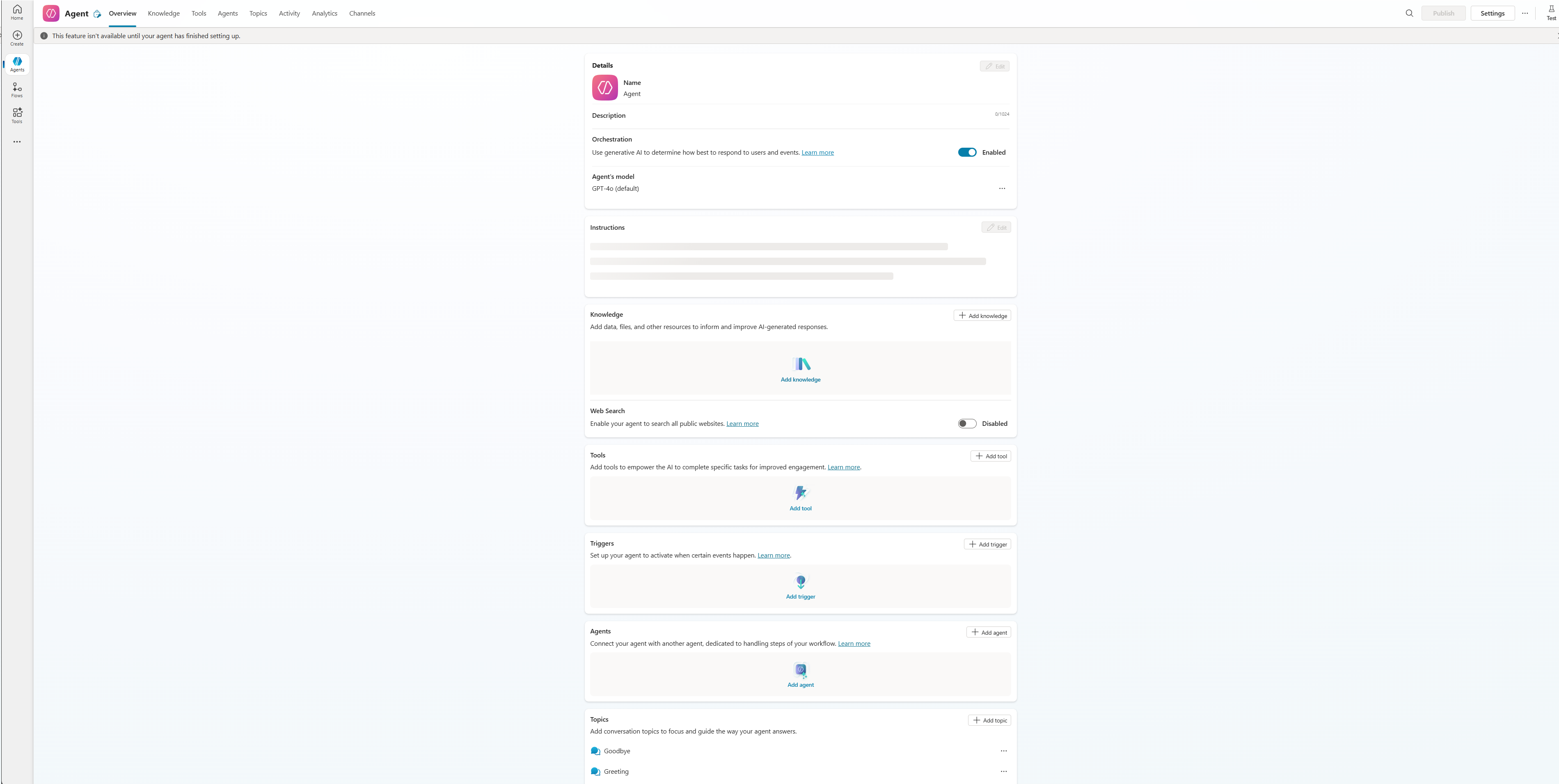

Copilot Studio:

Target Users and Ease of Use

User Profiles

Copilot Studio Agent Builder serves as an entry point for business users and knowledge workers without programming expertise. Implemented directly within the M365 Copilot interface, it functions as a simplified agent creation tool with a conversational interface. Users can generate agent instructions by either describing the agent’s function in natural language or completing a basic template. Accessibility is substantial - any M365 Copilot user can develop an agent through an intuitive process without requiring technical knowledge. For instance, a department manager could rapidly create a subject-specific assistant by defining its purpose and connecting relevant documentation, completing the process in minutes.

By comparison, Microsoft Copilot Studio targets technical practitioners, solution architects, and IT professionals tasked with developing comprehensive agent solutions. While classified as a low-code platform (with optional pro-code capabilities), it requires technical proficiency beyond what’s needed for Agent Builder. Copilot Studio offers a comprehensive development environment, featuring conversation flows, state management, and system connectors, which provide significant capabilities at the cost of increased complexity. Though more accessible than traditional development methods through its visual designer and pre-built components, creating solutions in Copilot Studio involves more technical considerations. Typically, technical specialists or cross-functional implementation teams utilize Copilot Studio for developing enterprise solutions.

Example: A basic FAQ bot for onboarding can be built by an HR specialist directly in Agent Builder with no code. However, if the HR team requires a more interactive onboarding assistant that asks new hires questions, updates databases, and schedules meetings, a developer might utilize Copilot Studio to design a richer conversation flow and integrate it with the HR system.

Technical Capabilities and Complexity Differentiation

Development Approach

Agent Builder: Implements a strictly no-code approach using natural language instructions for agent creation. Users define agent behavior through conversational inputs or simple templates, making it highly accessible for non-technical personnel.

Copilot Studio: Employs a low-code environment with visual flow designers and formula capabilities. Advanced users can access YAML code view for fine-grained customization, providing a technical bridge between accessibility and programmatic control.

User Segmentation

Agent Builder: Designed for general M365 Copilot users without technical expertise. Domain specialists and business users can rapidly develop assistants without needing to understand the underlying technical frameworks.

Copilot Studio: Targets technical implementers, IT professionals, and solution architects who require deeper control over agent functionality and integration capabilities.

Technical Learning Requirements

Agent Builder: Requires minimal technical knowledge—users familiar with standard Copilot interactions can create agents through guided processes. The interface abstracts away technical complexity.

Copilot Studio: Demands understanding of conversational design principles, topic management, action integration, and connector configuration. While templates assist development, users need technical proficiency to leverage advanced capabilities.

Functional Scope and Technical Architecture

Agent Builder Implementation:

• Optimized for knowledge-retrieval agents and basic task automation
• Operates primarily through declarative definitions that guide AI behavior
• Logic execution relies predominantly on the underlying language model
• Limited workflow complexity without support for advanced branching logic
• Technical architecture prioritizes simplicity over extensibility
• Suitable for departmental knowledge bases, policy assistants, or specialized information retrieval tools

Copilot Studio Implementation:

• Engineered for complex enterprise-grade conversational applications
• Supports detailed conversational flow design with conditional logic paths
• Implements state management through variables and entity tracking
• Enables procedural execution across multiple systems through integration frameworks
• Combines unstructured AI responses with structured process orchestration
• Technical architecture allows for both generative responses and deterministic workflows
• Appropriate for process automation agents that require multi-system coordination, business logic implementation, and complex decision trees

Integration and Extensibility

A key technical distinction between Agent Builder and Copilot Studio lies in their integration capabilities and extensibility architecture:

Knowledge and Data Sources: Both platforms support data grounding, but with different implementation approaches. Agent Builder provides document integration through a constrained set of predefined connectors:

• Maximum of 20 SharePoint sites/folders/files
• Maximum of 4 public websites (with URL traversal restrictions)
• Teams conversation history and Outlook email content (specific threads or “all email” option)
• Direct upload capability for up to 20 knowledge base documents

These data sources are configured through a simplified user interface. For instance, administrators can designate a SharePoint repository containing policy documentation or specify a public website URL, enabling the agent to reference this content during query processing. Agent Builder demonstrates strong integration with Microsoft 365 content repositories but lacks direct database connectivity or transaction capabilities with external SaaS platforms. Its functional scope primarily encompasses information retrieval and built-in LLM features (code interpretation, image generation).

Actions and Connectors: In contrast, Copilot Studio leverages Power Platform’s integration framework, providing extensive connectivity options:

• Implementation access to 1500+ pre-configured connectors (Microsoft and third-party services)
• Support for programmatic operations, including database queries, CRM record creation, email transmission, and customer profile retrieval
• Custom connector development capability for any REST API-enabled system
• Power Automate Integration: Copilot Studio agents can execute agent flows, enabling complex multi-step processes across diverse systems
• Extensibility frameworks: The platform supports AI Builder prompts (pre-configured AI capabilities), Azure Bot Framework skills, and the Agents SDK for external system communication

From a technical architecture perspective, Copilot Studio agents serve as both conversational interfaces and integration endpoints, enabling both information exchange and system interaction. For example, a finance-focused Copilot Studio implementation could establish bidirectional communication with an ERP system, allowing users to not only query expense report status but also initiate approval workflows through authenticated API calls. Agent Builder lacks this programmatic execution capability, limiting its functionality to information retrieval without the ability to modify external system state through API interactions.

Customization & Development Flexibility

Interface Control and Conversation Design

Copilot Studio: Provides comprehensive conversation flow control through its visual topic editor. Developers can explicitly define conversation pathways, including specific questions, response messages, and conditional logic branches. This architecture enables a hybrid approach that combines AI-generated responses with deterministic conversation flows when precise interactions are necessary.

Agent Builder: Implements a single-instruction model where all agent behavior derives from the initial instruction set. The platform does not support custom conversation branching or the implementation of conditional logic. The technical architecture treats the entire agent definition as a unified prompt structure processed by the underlying language model.

Response Formatting and UI Capabilities

Copilot Studio: Supports structured response formatting through Adaptive Cards technology, enabling rich text formatting, interactive button elements, and form components. Additionally, the platform enables the development of custom chat interfaces for web deployment scenarios, allowing organizations to implement branded experiences with tailored visual elements. These UI components can be programmatically controlled based on conversation context.

Agent Builder: Limited to the standard formatting capabilities of the Copilot chat interface. Output is restricted to plain text with basic Markdown formatting. No mechanisms exist for implementing custom UI components or interactive elements beyond the standard Copilot interface constraints.

Development Environment and Code Management

Copilot Studio: Features a dual-mode development environment with both visual designers and YAML code editing capabilities. Supports solution export/import functionality for cross-environment deployment. While native version control is limited, agents can be managed through Power Platform solution frameworks and conventional application lifecycle management (ALM) pipelines. Advanced development scenarios are supported through the Microsoft 365 Agents Toolkit, enabling Visual Studio Code integration and CI/CD implementation.

Agent Builder: Implements a form-based configuration interface with no underlying code representation accessible to users. The development process occurs entirely within the Copilot interface, without the need for exportable definition files. This architecture precludes standard source control integration or version management through conventional development tools.

Extensibility Architecture

Agent Builder: Constrained to the functional boundaries of M365 Copilot. Extensibility is limited to:

• Knowledge domain expansion through document integration
• Activation of Microsoft-provided capabilities (image generation, code interpretation)
• No mechanism exists for implementing custom action logic or external service integration beyond predefined connectors

Copilot Studio: Implements a comprehensive extensibility architecture functioning as a platform for custom AI application development:

• Integration with the complete Power Platform connector ecosystem
• Custom action development through low-code or pro-code approaches
• Incorporation of Azure AI services as functional components
• Implementation of custom authentication protocols for secure system access

This fundamental architectural difference establishes a clear technical decision point: when system integration requirements involve transaction processing in external systems (such as ticket creation in service management platforms or data modification in external CRM systems), Copilot Studio provides the necessary integration framework. Agent Builder’s architecture is not engineered to support these integration scenarios, limiting its application to information retrieval and content generation functions.

Autonomy and Orchestration

Agent Execution Models

Agent Builder: Implements a purely reactive execution model. These agents operate exclusively within the request-response paradigm, activating only when explicitly invoked by users through the Copilot chat interface. The technical architecture lacks event handling mechanisms, scheduled execution frameworks, or background processing capabilities. All agent interactions occur synchronously within user-initiated sessions, with no persistence between conversations beyond the knowledge sources defined during configuration. The system does not include components for monitoring external conditions or responding to system events.

Copilot Studio: Incorporates both reactive and autonomous execution architectures. The platform’s event-driven framework enables agents to execute based on external triggers, including:

• Time-based execution through scheduled intervals
• Data change detection through connector monitoring
• Message queue processing for asynchronous operations
• System event subscription for infrastructure monitoring
• State change notifications from connected applications

The autonomous execution framework (introduced in technical preview) implements a continuous monitoring loop that evaluates trigger conditions against defined thresholds. When conditions are met, the agent activates without explicit user interaction, following predefined execution paths while maintaining the ability to make contextual decisions through the language model’s reasoning capabilities.

Multi-Agent Orchestration Architecture

Agent Builder: Operates on an isolated agent model. Each agent instance functions as a discrete entity without programmatic communication channels to other agents. The architecture does not support:

• Inter-agent communication protocols
• Task delegation mechanisms
• Shared context or state management across agents
• Hierarchical agent relationships or delegation chains
• Composition of agent capabilities into unified workflows

Copilot Studio: Implements a multi-agent orchestration framework enabling complex agent interaction patterns:

• Parent-child agent relationships for task decomposition
• Specialized agent invocation for domain-specific functions
• Context passing protocols for maintaining conversation state across agent boundaries
• Capability-based routing for dynamic agent selection
• Sequential and parallel execution patterns for multi-agent workflows

The technical implementation utilizes message exchange standards that maintain contextual information while transferring control between agent instances. This enables implementation of the “agent of agents” pattern, where primary agents decompose complex requests into subtasks, delegating specialized functions to secondary agents with specific domain expertise or system access permissions.

Process Orchestration Capabilities

Agent Builder: Limited to single-turn interaction patterns. The system architecture supports:

• Basic query processing with knowledge retrieval
• Single context window operations without complex state tracking
• Linear conversation flows without branching execution paths
• Built-in tool capabilities (code interpretation, image generation) as atomic operations
• No persistent variables or session state beyond the immediate conversation context

Copilot Studio: Implements comprehensive workflow orchestration capabilities:

• Multi-step process execution with state preservation
• Conditional branching based on user inputs, system conditions, or AI reasoning
• Variables and entity tracking for maintaining context across conversation turns
• Integration with Power Automate (as agent flows) for complex process automation
• Parallel process execution through asynchronous action invocation
• Error handling protocols with fallback logic and exception management
• Transaction management for maintaining data consistency across system boundaries

This architecture enables Copilot Studio agents to function as orchestrators of complex business processes that span multiple systems while maintaining context throughout extended interaction sequences. For example, an order processing agent could validate inventory in an ERP system, create a customer record in CRM, generate a contract in a document management system, and schedule delivery through a logistics platform—all while maintaining a coherent conversation with the user and handling exceptions at each process stage.

Technical Example: Autonomous Business Process

Consider an accounts receivable management scenario: A Copilot Studio agent could be configured with time-based triggers to execute daily at 6:00 AM, examining the accounts receivable database for overdue invoices. The agent would:

1. Query the financial system using SQL connector to identify invoices exceeding payment terms
2. Apply AI reasoning to categorize accounts by risk factors (payment history, amount outstanding)
3. Generate personalized follow-up messages using customer communication history
4. Execute different actions based on risk classification:
   • Low risk: Send automated reminder through email connector
   • Medium risk: Create a follow-up task for the account manager in the CRM system
   • High risk: Initiate escalation workflow and generate a detailed risk assessment report
5. Log execution results in the monitoring database
6. Send summary analysis to the finance team

This implementation combines deterministic business rules with AI reasoning to handle variability in the collection process, eliminating the need for manual intervention. The architecture enables the agent to function as an autonomous system component rather than just an interactive assistant. Agent Builder cannot implement this scenario due to its lack of autonomous execution capabilities, persistent state management, and system integration frameworks.

Deployment and Administration

Deployment Channels

Agent Builder agents are restricted to the Microsoft 365 Copilot interface environment. Once created, agents reside in the M365 Copilot “agent catalog” where users can interact with them through the Copilot chat UI in Microsoft 365 applications or Teams’ Copilot interface. These agents function as extensions of the Copilot experience, essentially operating as custom Copilot plugins accessible to users within the tenant. Sharing capabilities are limited to colleagues or designated groups, but access remains confined to the Microsoft 365 Copilot or Teams interfaces. Agent Builder agents cannot be deployed as standalone chatbots for external websites or mobile applications. SharePoint implements a separate but related concept of site-specific Copilot agents, which utilize similar underlying technology but with a scope limited to individual SharePoint sites.

Copilot Studio agents support multi-channel deployment through several technical implementations:

• Teams: Deployable as Teams applications or chatbots
• Web: Embeddable on websites via Power Pages integration or iframe with custom canvas
• Mobile/Custom Applications: Integration via Azure Communication Services or Direct Line
• External Messaging Platforms: Support for WhatsApp, WeChat, SMS, Facebook Messenger through built-in adapters or connector frameworks
• Microsoft 365 Copilot Chat: Interoperability allows Studio-built agents to be published into the M365 Copilot experience, enabling users to access sophisticated agents directly within Copilot

This multi-channel architecture enables Copilot Studio agents to serve both internal users (via Teams or Office interfaces) and external customers (through public-facing websites or third-party messaging platforms) using unified agent logic.

Scaling and Governance

Agent Builder agents are tied to individual M365 Copilot environments, which have limited governance infrastructure. Administrative controls exist to enable/disable agent creation capabilities and manage certain aspects via the Microsoft 365 admin center or Power Platform admin interface, as Agent Builder agents are represented in the Power Platform environment backend. They do not consume Dataverse storage resources or require dedicated environment configuration, facilitating quick adoption but potentially creating management challenges for enterprise-scale deployments. Current implementations limit broad discovery within Copilot Chat, requiring explicit sharing through links or manual addition of users as agent viewers.

Copilot Studio operates within the Power Platform environment context, providing comprehensive administrative and governance capabilities:

• Resource Management: Agents are obvious and manageable in the Power Platform Admin Center and centralized tenant administration interfaces
• Environment Control: IT administrators can regulate creation/editing permissions and manage environment transitions between development/testing and production
• Security Implementation: Studio agents utilize enterprise-grade governance mechanisms, including Dataverse security roles, Microsoft Purview monitoring, and audit trail generation for compliance requirements
• Data Protection: The Copilot control system framework ensures data leakage protection mechanisms remain active

Both platforms respect data access permissions, but Copilot Studio offers more advanced features, including Customer Managed Keys and enhanced data encryption options.

Analytics and Lifecycle Management

Agent Builder offers minimal analytics capabilities, primarily limited to basic feedback mechanisms, such as thumbs-up/down indicators in the Copilot UI, without comprehensive analytical tooling.

Copilot Studio includes:

• Built-in analytics dashboards tracking conversation transcripts, resolution rates, and usage metrics
• Integration with Power Platform’s Application Lifecycle Management framework
• Solution packaging capabilities enabling environment propagation (development to production)
• Support for CI/CD implementation through standard Power Platform methodologies

Licensing Structure

Agent Builder is included within Microsoft 365 Copilot licensing ($30/user), with no separate cost structure.

Copilot Studio uses an independent licensing model:

• Available as metered consumption (Copilot Credits Pay-as-you-go)
• Alternatively offered as capacity licensing (e.g., $200 for 25,000 credits/month)
• Organizations can selectively enable Studio for specialized scenarios without requiring full M365 Copilot deployment across all users

The licensing architecture enables organizations to deploy both solutions based on use-case requirements: Agent Builder for rapid internal development and Studio for enterprise-scale implementations that require advanced capabilities.

Side-by-side comparison table

highlighting the key differences between Copilot Studio Agent Builder and Copilot Studio:

Conclusion

Microsoft’s Copilot ecosystem provides two distinct tools for creating AI assistants, each tailored to specific use cases and technical requirements. Copilot Studio Agent Builder offers a streamlined, no-code experience within the M365 environment, allowing business users to create knowledge-based assistants with minimal technical expertise quickly. It excels at information retrieval and simple task automation but lacks advanced integration capabilities and autonomous features.

Microsoft Copilot Studio, as part of the Power Platform, delivers a comprehensive development environment with low-code/pro-code capabilities targeted at technical implementers and IT professionals. It enables complex enterprise-grade conversational applications with sophisticated features, including multi-system integration, autonomous operation, multi-agent orchestration, and deployment across numerous channels.

Recommendations

Use Copilot Studio Agent Builder when:

• You need rapid deployment of simple AI assistants without technical resources
• Your requirements focus primarily on information retrieval from M365 content
• Users are exclusively within your Microsoft 365 environment
• The agent doesn’t need to modify data in external systems
• You want to leverage existing M365 Copilot licensing without additional costs

Use Microsoft Copilot Studio when:

• You require complex conversation flows with conditional logic and state management
• Your agent needs to integrate with external systems through API calls or connectors
• The solution demands autonomous operation triggered by events or schedules
• You’re building customer-facing experiences across multiple channels
• Enterprise governance, ALM practices, and advanced analytics are important
• You need orchestration capabilities across multiple specialized agents

Organizations will likely benefit from implementing both solutions strategically, using Agent Builder for departmental quick wins and Copilot Studio for mission-critical, enterprise-grade AI applications that require sophisticated integration and process automation capabilities.
